Flanged Bearing Housing Parts TK6204 - 114 Hot Sale Steel Rolller Accessory
Bearing Housing Specification
| Model | Specification | Flange mm | Bearing seat dia mm | Caliber mm | Hole mm | Deep dia mm | Height mm | Thickness mm |
| TK | 6204-89 | 84 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-108 | 103 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-133 | 128 | 47 | 47.1 | 25 | 45 | 47.5 | 3 |
| TK | 6204-159 | 153 | 47 | 47.1 | 25 | 45 | 48 | 3 |
| TK | 6205-89 | 84 | 52 | 52.1 | 30 | 46 | 48.5 | 3 |
| TK | 6205-108 | 103 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6205-133 | 128 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6205-159 | 153 | 52 | 52.1 | 30 | 46 | 49 | 3 |
| TK | 6305-108 | 103 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6305-133 | 128 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6305-159 | 153 | 62 | 62.1 | 35 | 49 | 52 | 3 |
| TK | 6306-108 | 103 | 72 | 72.1 | 40 | 51 | 54 | 3 |
| TK | 6306-133 | 128 | 72 | 72.1 | 40 | 51 | 54 | 3 |
| TK | 6306-159 | 153 | 72 | 72.1 | 40 | 51 | 55 | 4 |
| TK | 6307-133 | 128 | 80 | 80.1 | 45 | 53 | 57 | 4 |
| TK | 6307-159 | 153 | 80 | 80.1 | 45 | 53 | 57 | 4 |
| TK | 6308-133 | 128 | 90 | 90.1 | 45 | 55 | 59 | 4 |
Material:
1*Bearing housing ——SPHC 【100% good quality material】
1* Inner seal ring ——PA6 【High temperature resistance】
1* Female labyrinth seal——POM 【Low water absorbing, high abrasion resistance】
1* Male labyrinth seal——POM 【Low water absorbing, high abrasion resistance】
1* Metal cover seal——SPCC 【High precision】
1* Protective cover——PA6 【High temperature resistance】

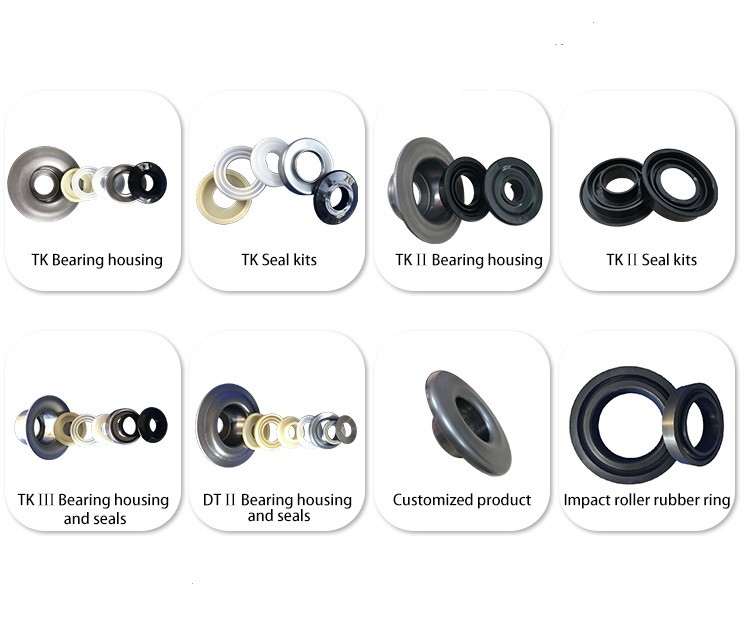

Product (TK Series Bearing Housing and Seals):
Our roller bearing housing and the relative seals have the advange of high precision, good gloss,
without stretching scars or burrs. Own over 80 punch equipments which tonnage from 63T to 400T.
Tolerance of bearing housing accurate to 0.01mm.
Factory Show:
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years.
We have 4 advanced production lines which make us the largest and most professional bearing housing maker
in China.
Packing:
Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,
we could also packed the items as requested.
Customer Visiting:
Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands,
Chile, Mexico, Colombia, Thailand, Indonesia.,etc.
Welcome to visit our factory, and we promise to provide you with our best products and services.
